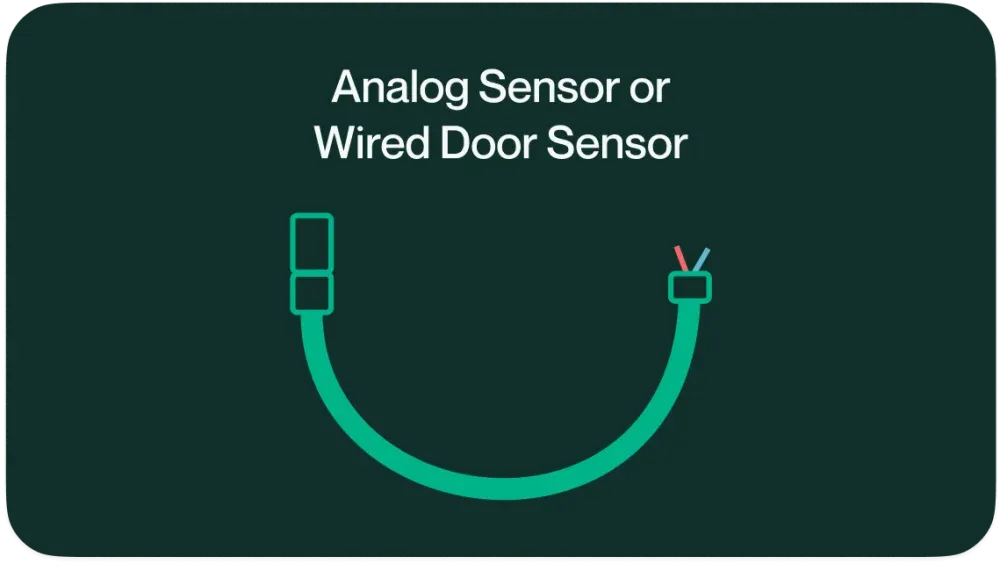

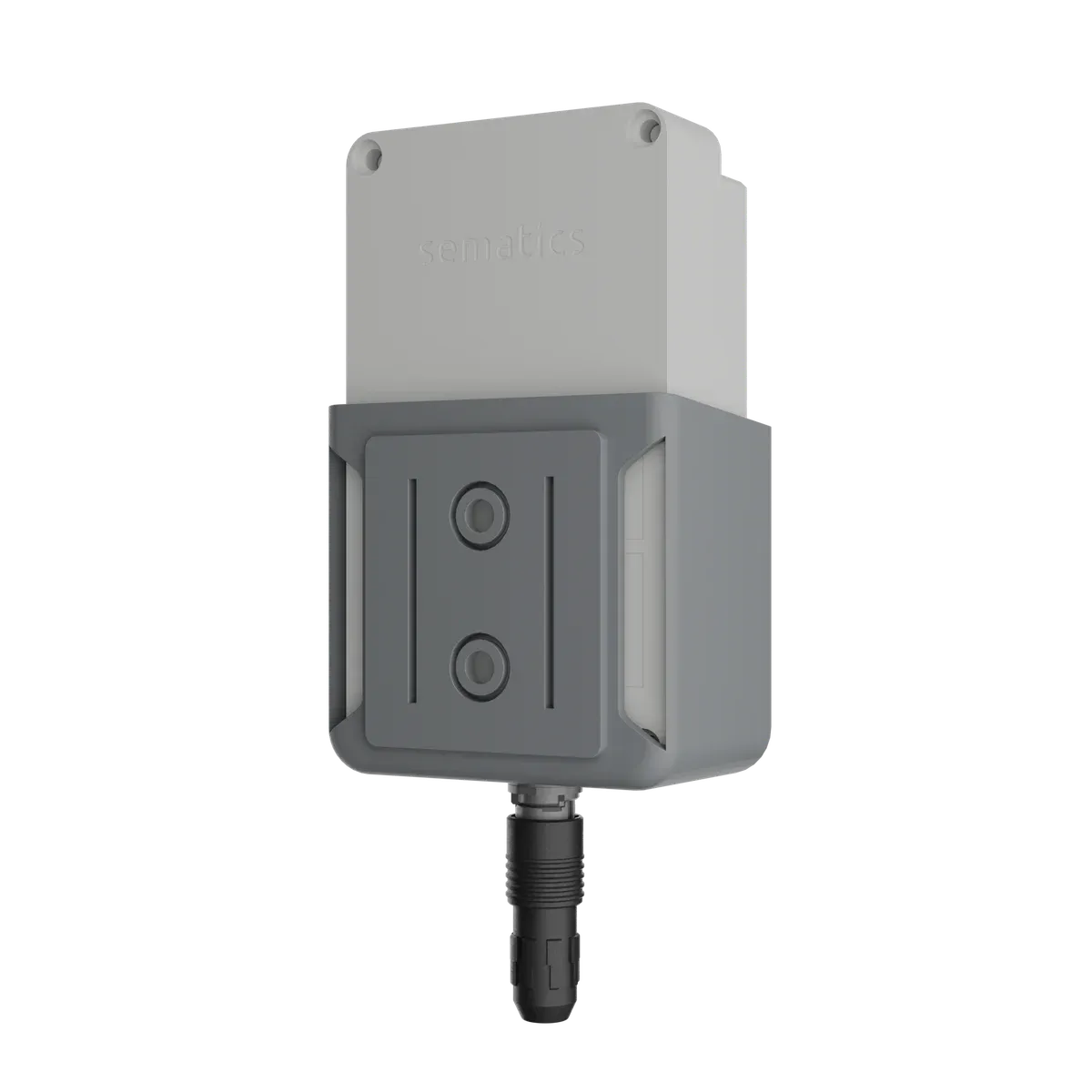

Analogue sensor cable
A shielded 2-core lead with tinned ends for wiring a 4 to 20 mA, 0 to 5 V or 0 to 10 V sensor (CO₂, pressure, gas) into the Node+ Analog.
- Wired to Node+
- Analogue (CO₂, pressure, gas)
- Signals (Node+ Analog input)
- 4 to 20 mA, 0 to 5 V, 0 to 10 V
- Cable
- 22 AWG 2-core (red and black), FEP insulation, braided shield, black FEP jacket
- Sensor end
- Stripped 35 ±5 mm, tinned 5 ±1 mm
Key specifications
Analogue cable at a glance
Copied from the Probe and cable technical drawings. The full tables are further down.
| Signals (Node+ Analog input) | 4 to 20 mA, 0 to 5 V, 0 to 10 V |
|---|---|
| Cable | 22 AWG 2-core (red and black), FEP insulation, braided shield, black FEP jacket |
| Sensor end | Stripped 35 ±5 mm, tinned 5 ±1 mm |
| Cable length | 1000 ±50 mm |
| Node connector | HR30-6P-6S |
| Materials | RoHS compliant |
