Gateways · GW-CORE

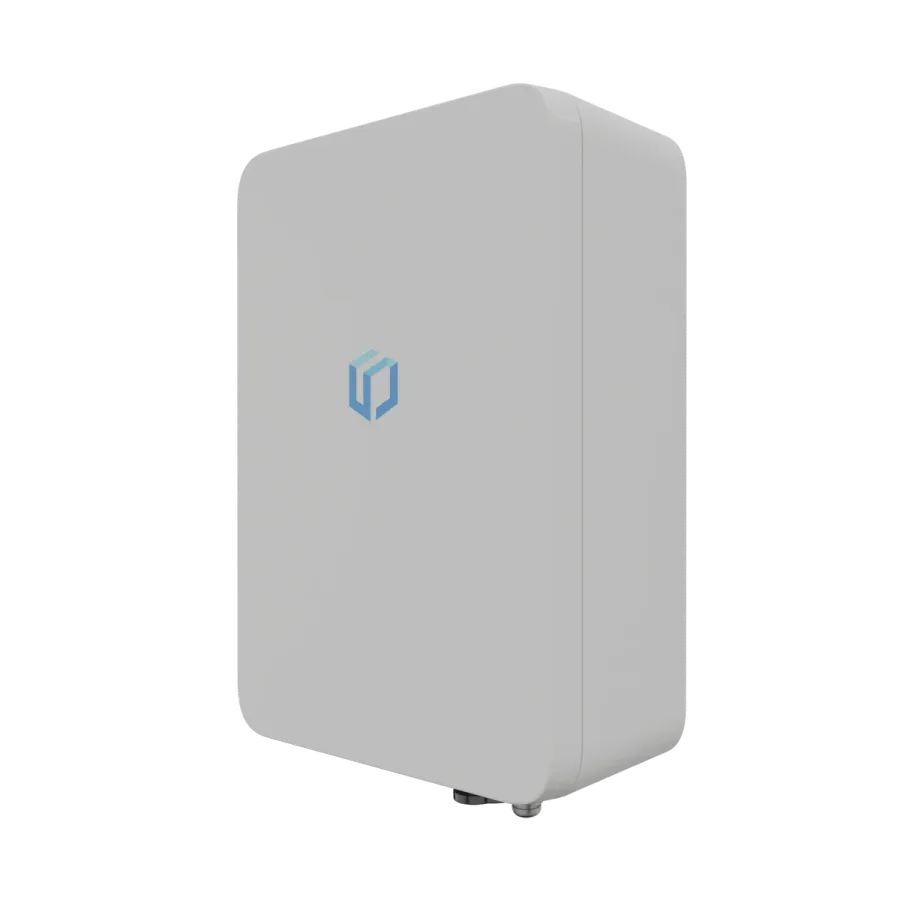

Sematics Link+ Core
A compact, semi-industrial LoRaWAN gateway on 4G LTE, IP65 for light outdoor use under shelter, with the same Link OS 1.2 features as the Link+ Pro. Up to 2,000 devices.
- LoRaWAN gateway
- Device capacity
- Up to 2,000 devices (single SX1302 concentrator, 8 channels)
- Backhaul
- 4G LTE Cat 4; IP-level mesh
- Power
- 9 to 24 VDC input
Key specifications
Link+ Core at a glance
Copied from the Link+ Core datasheet (GW-CORE). The full tables are further down.
| Device capacity | Up to 2,000 devices (single SX1302 concentrator, 8 channels) |
|---|---|
| Backhaul | 4G LTE Cat 4; IP-level mesh |
| Power | 9 to 24 VDC input |
| Ingress protection | IP65 (light outdoor use, under shelter) |
| Operating temperature | −30 °C to +55 °C |
| Enclosure | 180 × 125 × 57 mm, ~750 g |
| Mounting | Wall mount kit included |
| Certifications | CE, UKCA, FCC |
Datasheet
Full specifications
Every table from the datasheet, as published.
Technical specifications
| LoRa radio | Single SX1302 concentrator, 8 channels |
|---|---|
| LoRaWAN protocol | LoRaWAN 1.0.3/1.0.4, full bi-directional uplink and downlink, ADR, message confirmation, AES-128 encryption |
| Device capacity | Up to 2,000 devices |
| Sensitivity | −139 dBm min receive, +27 dBm max TX |
| Primary backhaul | 4G LTE Cat 4 |
| Mesh backhaul | Built-in IP-level mesh routing for multi-hop backhaul between gateways |
| CPU and memory | MT7628 580 MHz CPU, 128 MB DDR2 RAM |
| Gateway management | Link OS 1.2 with secure OTA updates, VPN, remote fleet management |
| Enclosure | IP65; 180 × 125 × 57 mm, ~750 g |
| Operating temperature | −30 °C to +55 °C |
| Power | 9 to 24 VDC input |
| Mounting | Wall mount kit included |
| Connections | Nano SIM slot, LoRa SMA connector |
| Certifications | CE, FCC, UKCA |
