Gateways · GW-ONE

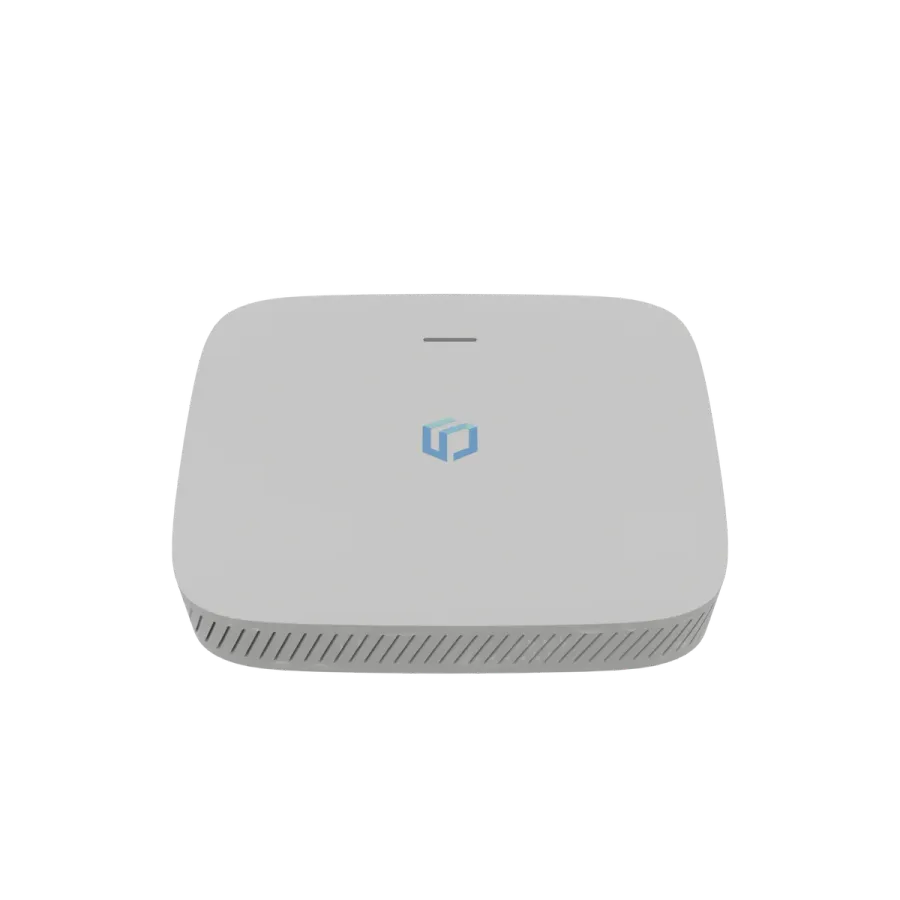

Sematics Link+ One
A plug-and-play indoor LoRaWAN gateway: Ethernet first with built-in 4G LTE backup, powered by PoE or DC, and small enough for a wall, shelf or cabinet. Up to 2,000 devices.
- LoRaWAN gateway
- Device capacity
- Up to 2,000 devices (single SX1302 concentrator, 8 channels)
- Backhaul
- 10/100 Mbps Ethernet (PoE); built-in 4G LTE Cat 4 backup; IP-level mesh
- Power
- 9 to 24 VDC input or 802.3af PoE
Key specifications
Link+ One at a glance
Copied from the Link+ One datasheet (GW-ONE). The full tables are further down.
| Device capacity | Up to 2,000 devices (single SX1302 concentrator, 8 channels) |
|---|---|
| Backhaul | 10/100 Mbps Ethernet (PoE); built-in 4G LTE Cat 4 backup; IP-level mesh |
| Power | 9 to 24 VDC input or 802.3af PoE |
| Ingress protection | Indoor only |
| Operating temperature | −10 °C to +55 °C |
| Enclosure | 120 × 120 × 30 mm, ~270 g |
| Mounting | Wall or desk mount |
| Certifications | CE, UKCA, FCC |
Datasheet
Full specifications
Every table from the datasheet, as published.
Technical specifications
| LoRa radio | Single SX1302 concentrator, 8 channels |
|---|---|
| LoRaWAN protocol | LoRaWAN 1.0.3/1.0.4, full bi-directional uplink and downlink, ADR, message confirmation, AES-128 encryption |
| Device capacity | Up to 2,000 devices |
| Sensitivity | −139 dBm min receive, +27 dBm max TX |
| Primary backhaul | 10/100 Mbps Ethernet (PoE) |
| Backup backhaul | Built-in 4G LTE Cat 4 (all models) |
| Power | 9 to 24 VDC input or 802.3af PoE |
| Mesh backhaul | Integrated IP-level mesh routing |
| CPU and memory | MT7628 580 MHz CPU, 128 MB DDR2 RAM |
| Gateway management | Link OS 1.2 with secure OTA updates, VPN, remote fleet management |
| Enclosure | Indoor only; 120 × 120 × 30 mm, ~270 g |
| Operating temperature | −10 °C to +55 °C |
| Mounting | Wall or desk mount |
| Connections | 1 × RJ45 Ethernet, nano SIM slot, LoRa SMA connector |
| Certifications | CE, FCC, UKCA |
Works with

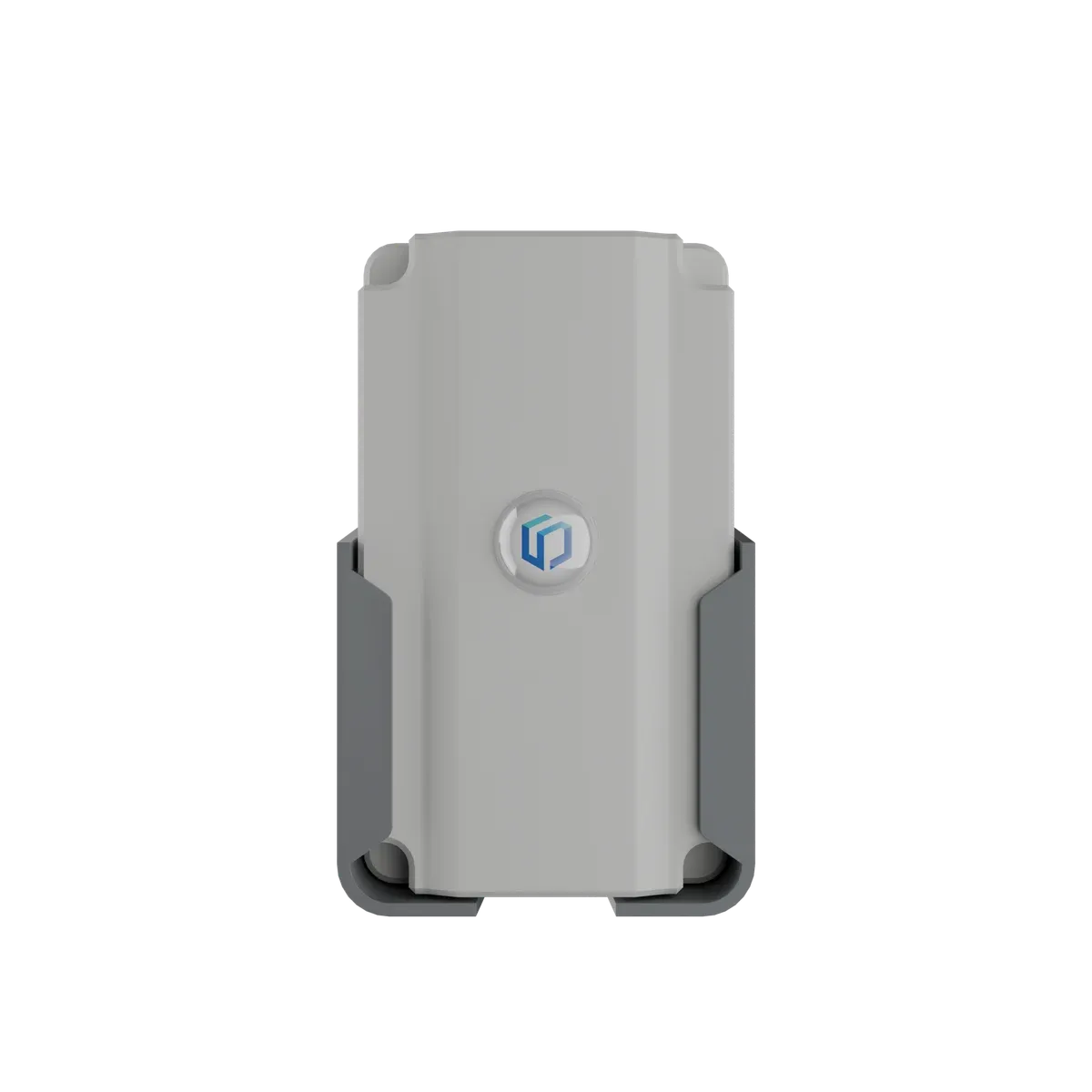

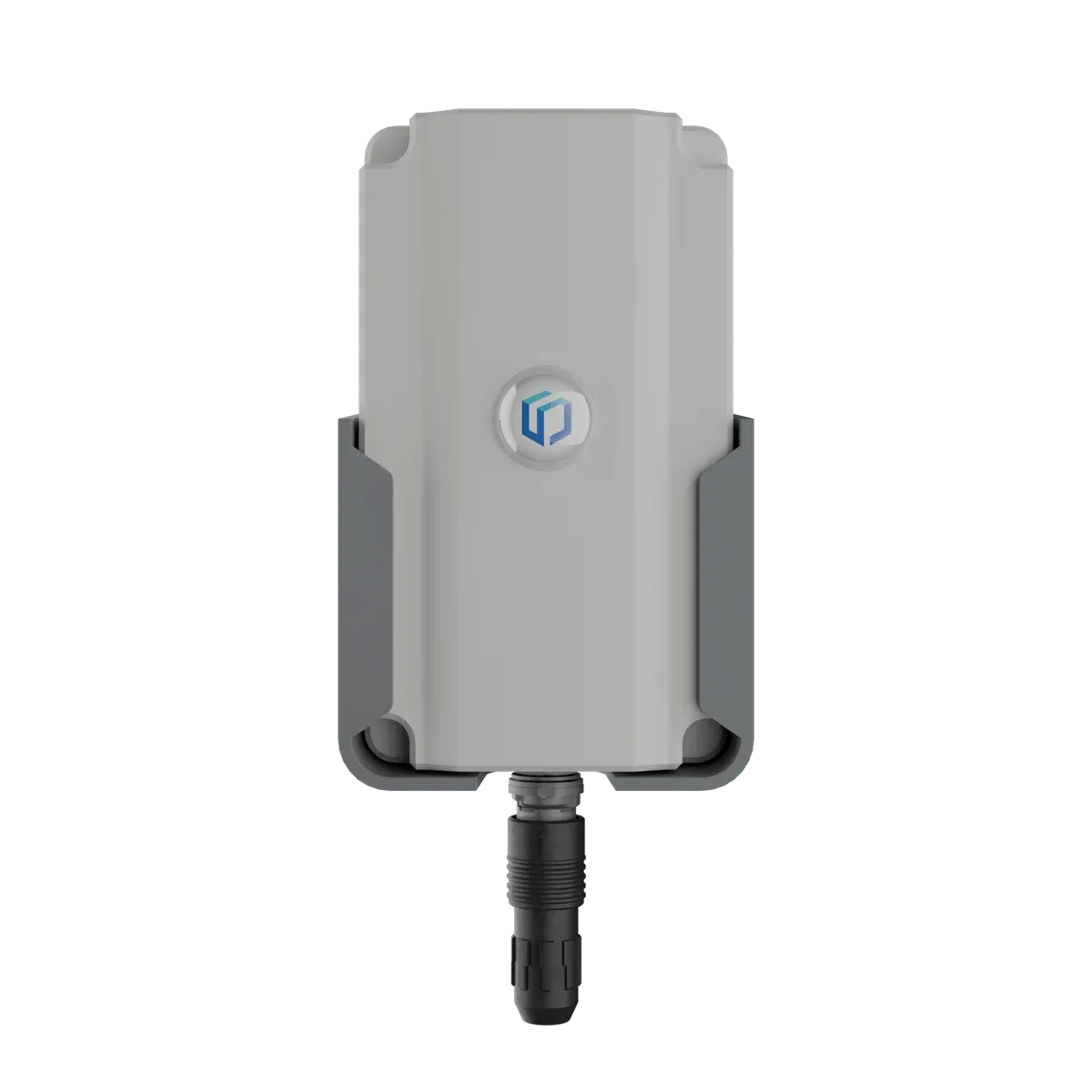

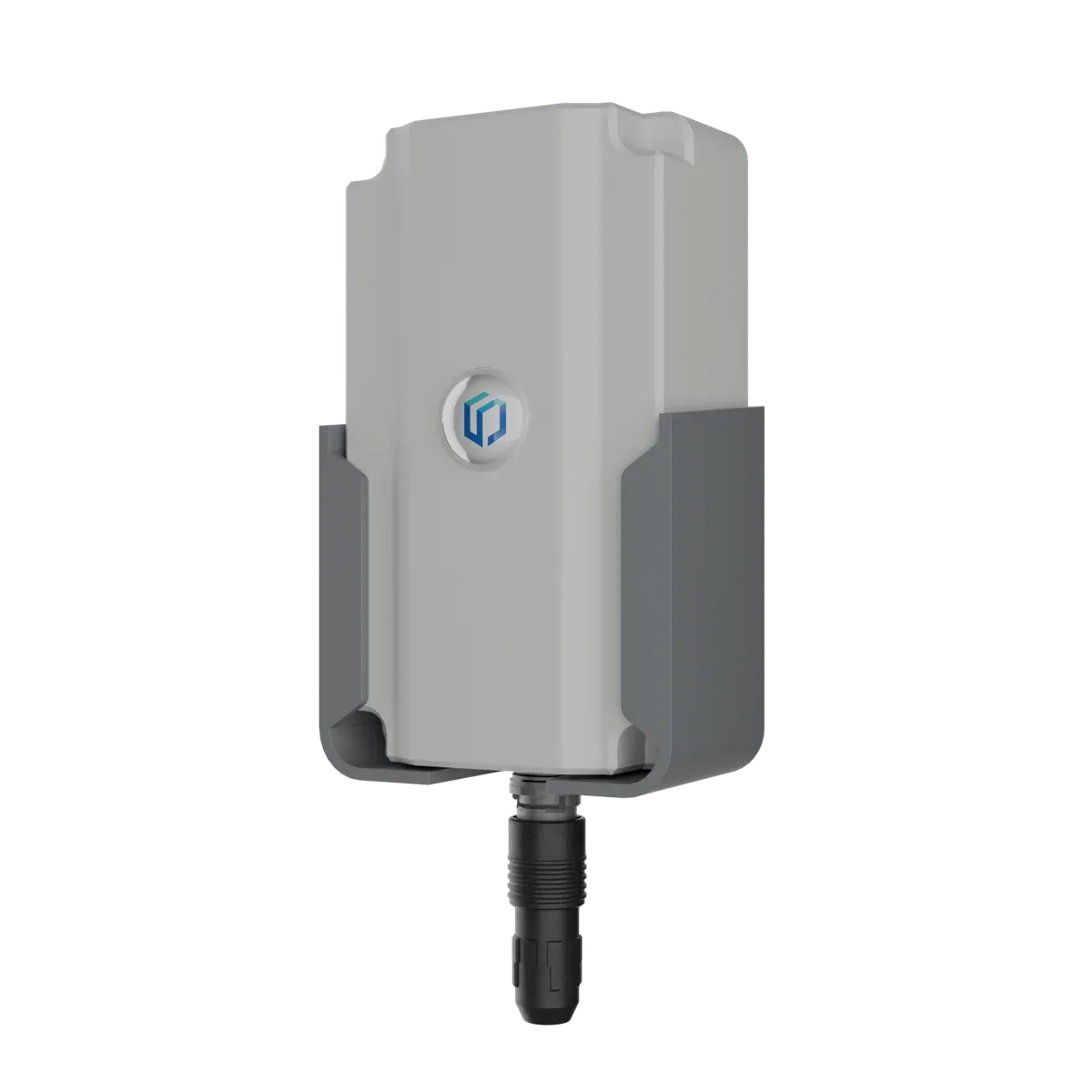

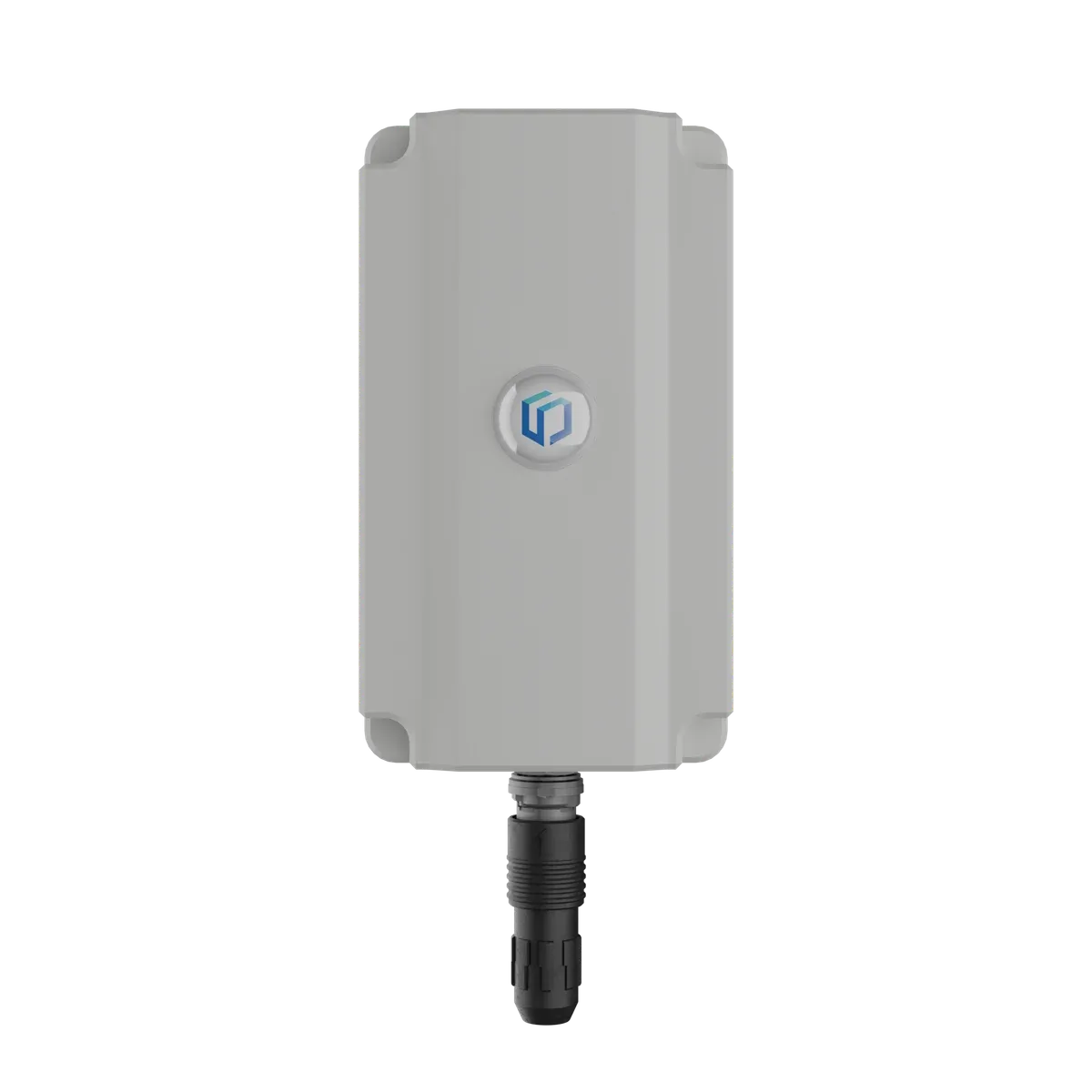

Sensors it carries
Works with Sematics
Readings become alarms, records and reports
Every reading goes to Sematics, where alarms reach a person, the audit trail is kept, and reports are ready when the inspector asks.
