Gateways · GW-PRO

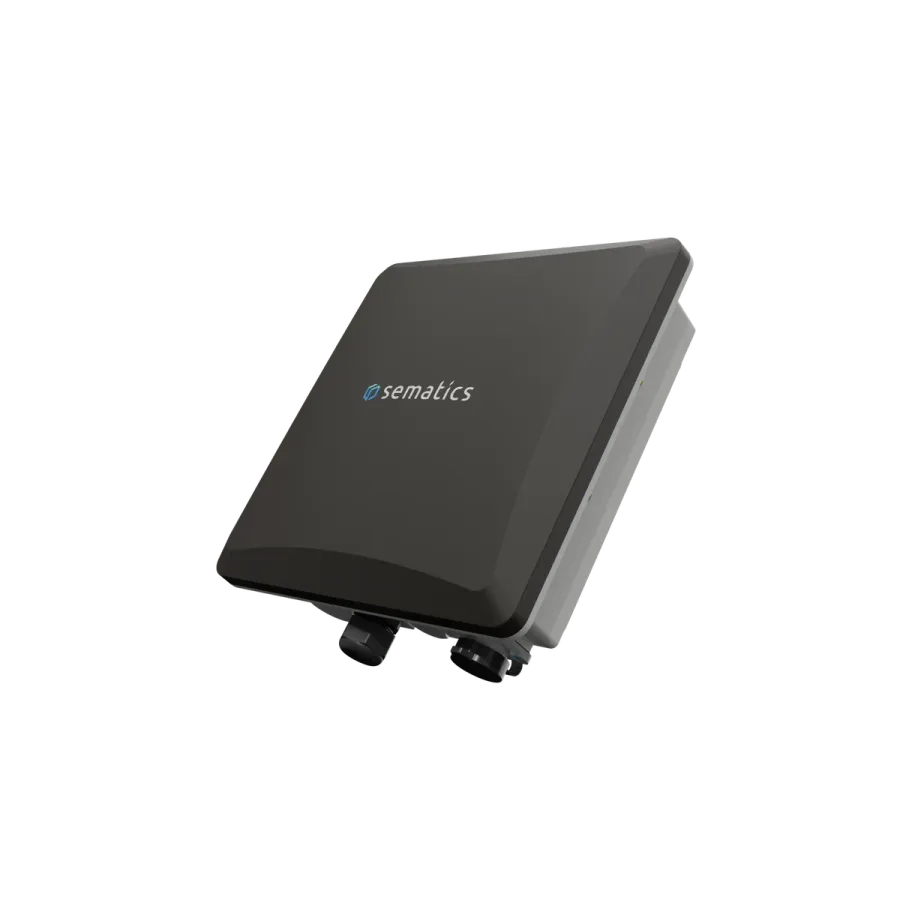

Sematics Link+ Pro
A rugged outdoor LoRaWAN gateway with dual concentrators (8 or 16 channels), Ethernet with automatic 4G LTE failover, IP67 and −40 °C to +70 °C. Up to 4,000 devices.
- LoRaWAN gateway
- Device capacity
- Up to 2,000 devices (8 channels) or 4,000 (16 channels); dual SX1303 concentrators
- Backhaul
- 10/100 Mbps Ethernet (PoE); 4G LTE Cat 4 failover; IP-level mesh
- Power
- 802.3af PoE (37 to 57 VDC) or 12 VDC input
Key specifications
Link+ Pro at a glance
Copied from the Link+ Pro datasheet (GW-PRO). The full tables are further down.
| Device capacity | Up to 2,000 devices (8 channels) or 4,000 (16 channels); dual SX1303 concentrators |
|---|---|
| Backhaul | 10/100 Mbps Ethernet (PoE); 4G LTE Cat 4 failover; IP-level mesh |
| Power | 802.3af PoE (37 to 57 VDC) or 12 VDC input |
| Ingress protection | IP67/NEMA 6 |
| Operating temperature | −40 °C to +70 °C, 0 to 95% RH non-condensing |
| Enclosure | 240 × 240 × 89.5 mm, ~4.6 kg |
| Mounting | Wall or pole mount kit included |
| Certifications | CE, UKCA, FCC |
Datasheet
Full specifications
Every table from the datasheet, as published.
Technical specifications
| LoRa radio | Dual SX1303 concentrators, 8 to 16 channels |
|---|---|
| LoRaWAN protocol | LoRaWAN 1.0.3/1.0.4, full bi-directional uplink and downlink, ADR, message confirmation, AES-128 encryption |
| Device capacity | Up to 2,000 devices (8 channels) / 4,000 devices (16 channels) |
| Sensitivity | −139 dBm minimum receive, up to +27 dBm transmit |
| Primary backhaul | 10/100 Mbps Ethernet (PoE) |
| Failover backhaul | 4G LTE Cat 4 |
| Mesh capability | Built-in IP-level mesh routing for multi-hop backhaul between gateways |
| CPU and memory | MT7628 CPU, 128 MB DDR2 RAM |
| Gateway management | Secure OTA firmware updates via Sematics Cloud |
| Enclosure | IP67/NEMA 6, 240 × 240 × 89.5 mm, ~4.6 kg |
| Operating temperature | −40 °C to +70 °C, 0 to 95% RH non-condensing |
| Power | 802.3af PoE (37 to 57 VDC) or 12 VDC input |
| Mounting | Wall or pole mount kit included |
| Connections | 1 × RJ45 Ethernet, nano SIM slot, dual LoRa N-type ports |
| Certifications | CE, UKCA, FCC |
| Firmware | Sematics Link OS 1.2: LoRaWAN server stack with secure OTA updates, mesh backhaul, VPN support and remote gateway fleet management |
