Eastron SDM630MCT LoRaWAN MID energy meter

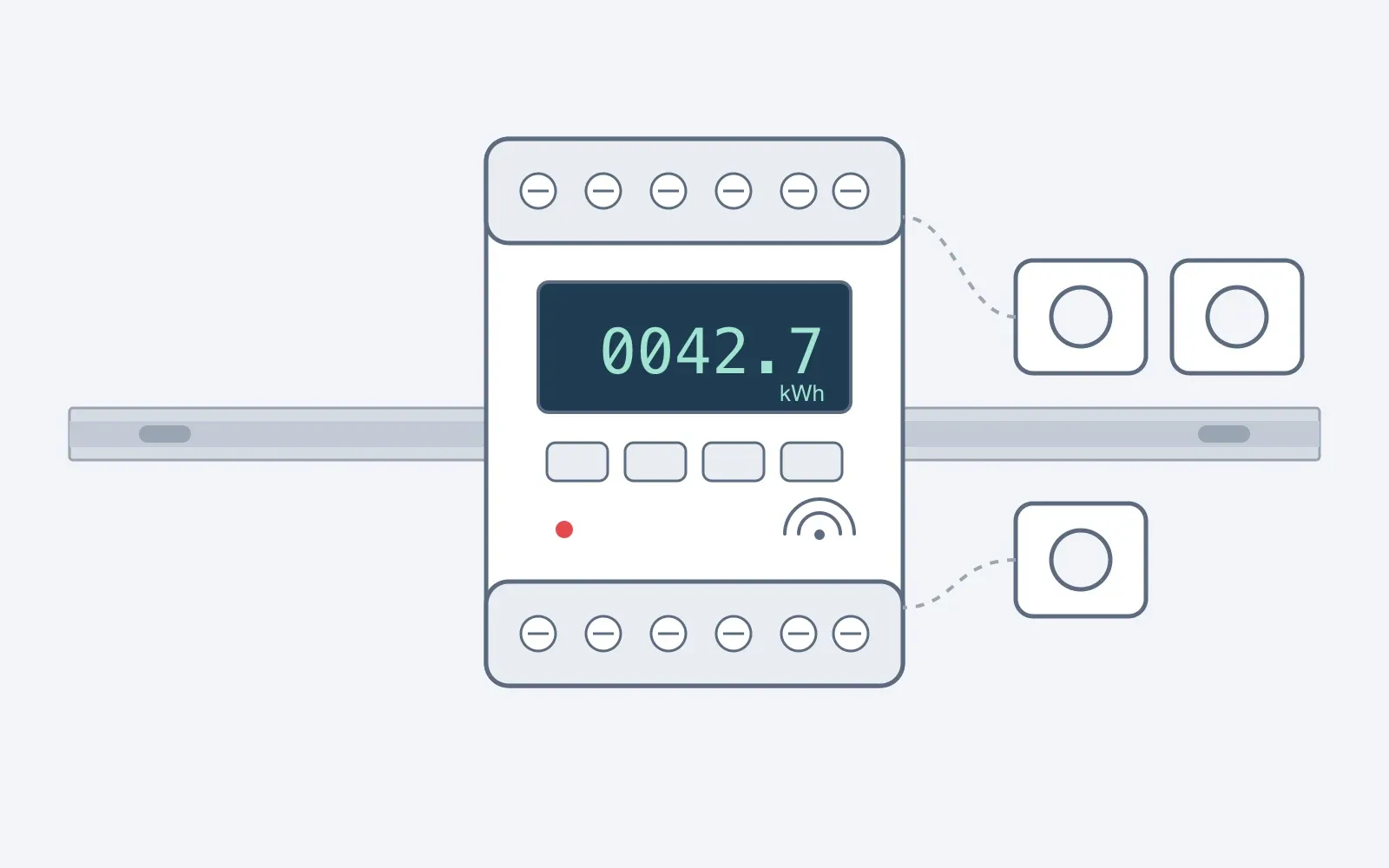

A DIN rail energy meter for incoming supplies, refrigeration plant and other circuits, read through current transformers (CTs). It is MID approved for kWh, measures single-phase and 3-phase supplies, and sends its readings over LoRaWAN to Sematics, where energy sits alongside your temperatures.
- LoRaWAN
- Energy (kWh)
- Power demand
- Current
- Supply systems
- 3-phase 4-wire, 3-phase 3-wire, single-phase 2-wire and single-phase 3-wire
- Current input
- External CTs with a 1 A or 5 A secondary; CT primary set from 1 to 9,999 A
- MID approval
- MID approved for active energy (kWh): EN 50470-1 and EN 50470-3, Class B
Key specifications
SDM630MCT LoRaWAN at a glance
From the product information on our current range. Ask us for the full specification.
| Supply systems | 3-phase 4-wire, 3-phase 3-wire, single-phase 2-wire and single-phase 3-wire |
|---|---|
| Current input | External CTs with a 1 A or 5 A secondary; CT primary set from 1 to 9,999 A |
| MID approval | MID approved for active energy (kWh): EN 50470-1 and EN 50470-3, Class B |
| Voltage | 230 V L-N nominal; measures 100 to 276 V L-N, 173 to 480 V L-L |
| Connectivity | LoRaWAN 1.0.2, Class C, EU868; OTAA or ABP |
| Recorded in Sematics | Total energy (kWh), power demand (W), total current (A), frequency (Hz) |
| Mounting | DIN rail (DIN 43880), four modules; 72 × 94.5 × 65 mm |
| Protection | IP51, indoor; fitted in a distribution board or enclosure |
| Power | Auxiliary supply 85 to 275 V AC or 120 to 380 V DC, under 7 VA (3.5 W) |
Datasheet
Full specifications
Every table from the datasheet, as published.
Eastron publishes the user manual for this meter. Ask us and we will send it with the specification for your circuits. Ask for the specification
What the meter measures
| On the meter | Voltage and current per phase, voltage and current THD, frequency, power factor, active, reactive and apparent power, maximum current and power demand, import, export and total kWh and kVArh |
|---|---|
| Recorded in Sematics today | Total energy (kWh), power demand (W), total current (A) and frequency (Hz) |
| Maximum demand period | Preset periods of up to 60 minutes |
| Data update rate | 1 second nominal (on the meter) |
| Maximum reading | 9,999,999.9 kWh or kVArh |
The meter measures more than Sematics records. Ask us if you need per-phase readings, power factor or reactive energy on the platform.
Accuracy and approval
| MID | EN 50470-1 and EN 50470-3, Class B (active energy) |
|---|---|
| Accuracy class | Eastron's product page gives Class 0.5 (IEC/EN 62052-11, Class 0.5S); the 2020 user manual gives IEC 62053-21 Class 1 for active energy. We confirm the class of the meters we supply in the quote |
| Current and voltage | ±0.5% |
| Frequency | ±0.2% |
| Power factor | ±0.01 |
Accuracy is the manufacturer's. For a CT-operated meter, the accuracy of the whole installation also depends on the CTs and their ratio set on the meter.
Electrical inputs
| Supply systems | 1p2w, 1p3w, 3p3w, 3p4w |
|---|---|
| Nominal voltage | 230 V L-N |
| Measured voltage | 100 to 276 V L-N; 173 to 480 V L-L |
| Frequency range | 45 to 65 Hz |
| CT primary | 1 to 9,999 A (set on the meter) |
| CT secondary | 1 A or 5 A |
| Measured current | 5 mA to 6 A (CT secondary) |
| Current withstand | 8 A continuous; 120 A for 0.5 seconds |
| Auxiliary supply | 85 to 275 V AC or 120 to 380 V DC, under 7 VA (3.5 W) |
| Terminals | 2.5 mm² stranded wire |
Wireless
| Protocol | LoRaWAN Specification 1.0.2 |
|---|---|
| Class | Class C (mains powered, always listening) |
| Frequency band | EU868 |
| Activation | OTAA or ABP |
| Output power | 13 dBm |
| Range | Up to 3,000 m in an open area (manufacturer figure) |
| Automatic upload | Up to 30 parameters, at a configurable interval |
Outputs
| Pulse output 1 | Passive, configurable: total, import or export kWh or kVArh |
|---|---|
| Pulse output 2 | Passive, fixed to total kWh at 3,200 impulses per kWh |
Mechanical and environmental
| Mounting | DIN rail (DIN 43880), four modules |
|---|---|
| Dimensions | 72 × 94.5 × 65 mm (W × H × D) |
| Weight | 300 g |
| Ingress protection | IP51 (indoor) |
| Case material | Self-extinguishing, UL 94 V-0 |
| Operating temperature | −25 °C to +55 °C |
| Storage temperature | −40 °C to +70 °C |
| Humidity | Below 95% RH at 50 °C, non-condensing |
Safety
| Design standard | IEC 61010-1, permanently connected use |
|---|---|
| Measurement and overvoltage category | CAT III |
| Protective class | II |
| Fusing | No internal fuses: external fuses are required on the voltage connections |
| CTs | Never open-circuit the secondary of an energised CT; CT secondaries must be earthed |
| Installation | By qualified, trained personnel only, with all supplies isolated before connecting |
From the manufacturer's installation instructions. Our electrical contractor partners fit the meter and CTs.
Compatible
Compatible gateways
The meter reports over LoRaWAN through the Link+ gateways on your site, the same gateways that carry your Node+ temperature readings.
Works with Sematics
Readings become charts and records
Energy, power demand and current land on the same Sematics account as your temperature sensors, so the plant and the rooms it cools are on one screen.
